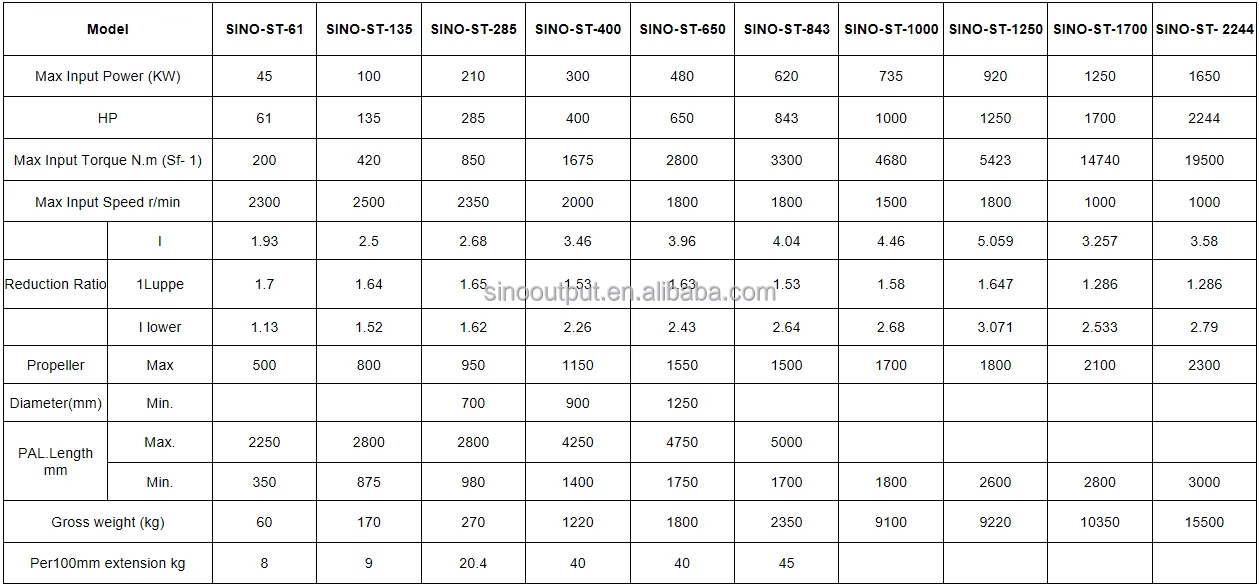

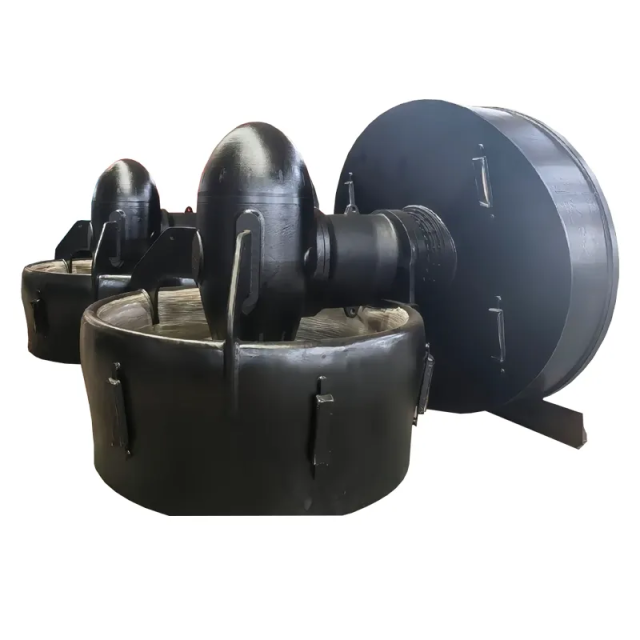

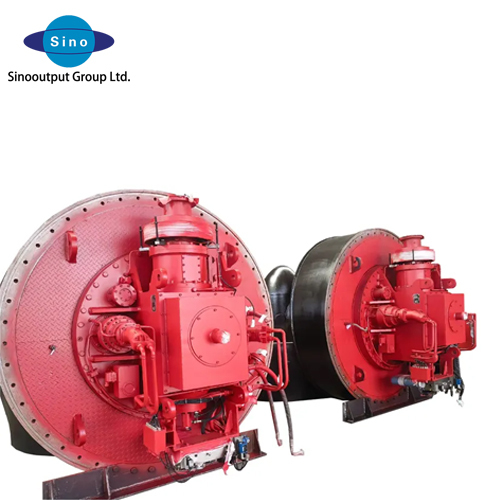

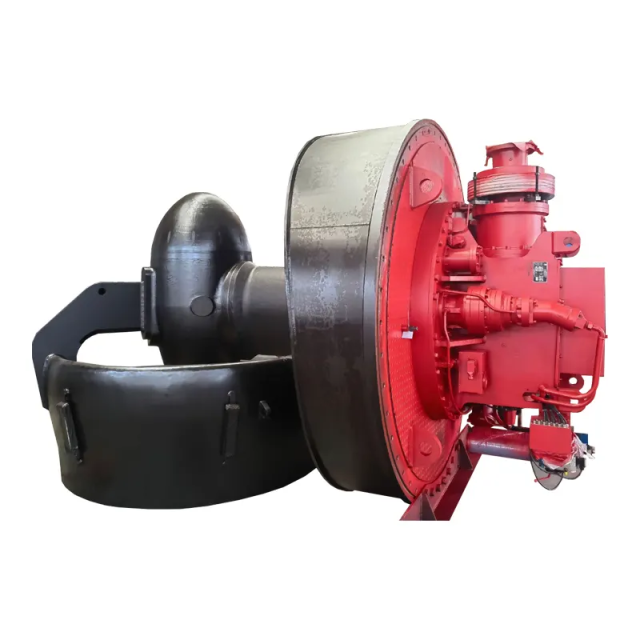

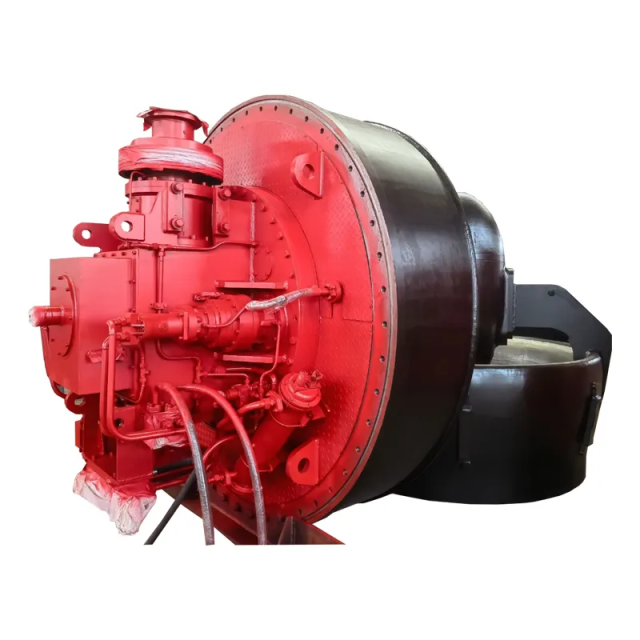

Marine azimuth thruster with single propeller SINO-ST-61 SINO-ST-135 input power 45kW 100kW diameter 500mm 800mm 3-6 blades
Above models normally name as the engine horsepower, it will not limited as above models... ST series could up to 3500hp. PAL: The length between to center line of the transmission flange and the center line of the propeller. Max input torque of rudder propeller decided capacity of its transmit power of prime mover the kind of rudder propeller operation, the type prime mover or the sort of vessel may influence the actual allowable input torque figure. It is recommended to consult with our technical staff before selecting the definite rudder propeller size.
Single propeller thruster models driven by diesel engine
Above models normally name as the engine horsepower, it will not limited as above models... ST series could up to 3500hp. PAL: The length between to center line of the transmission flange and the center line of the propeller. Max input torque of rudder propeller decided capacity of its transmit power of prime mover the kind of rudder propeller operation, the type prime mover or the sort of vessel may influence the actual allowable input torque figure. It is recommended to consult with our technical staff before selecting the definite rudder propeller size.

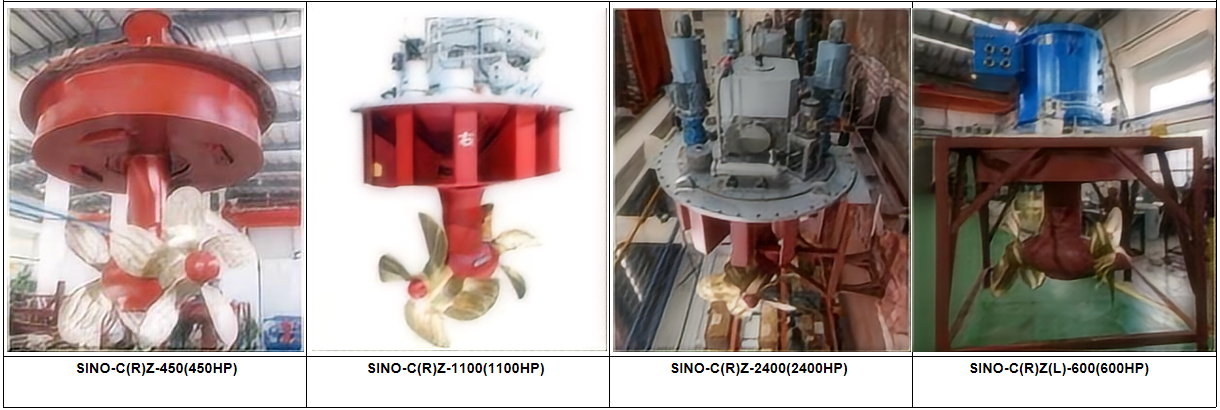

Contra-rotating propeller rudder propeller: The design power is 40kW~5MW, and the installed power is 40kW~1.7MW. It is suitable for various speed comparisons such as car-passenger ferries, passenger/cruise ships, engineering ships, and official ships, high sped ship etc. The rudder propeller transmission mode can be Z-type or L-type; the rotation mode can be hydraulic or pure power.

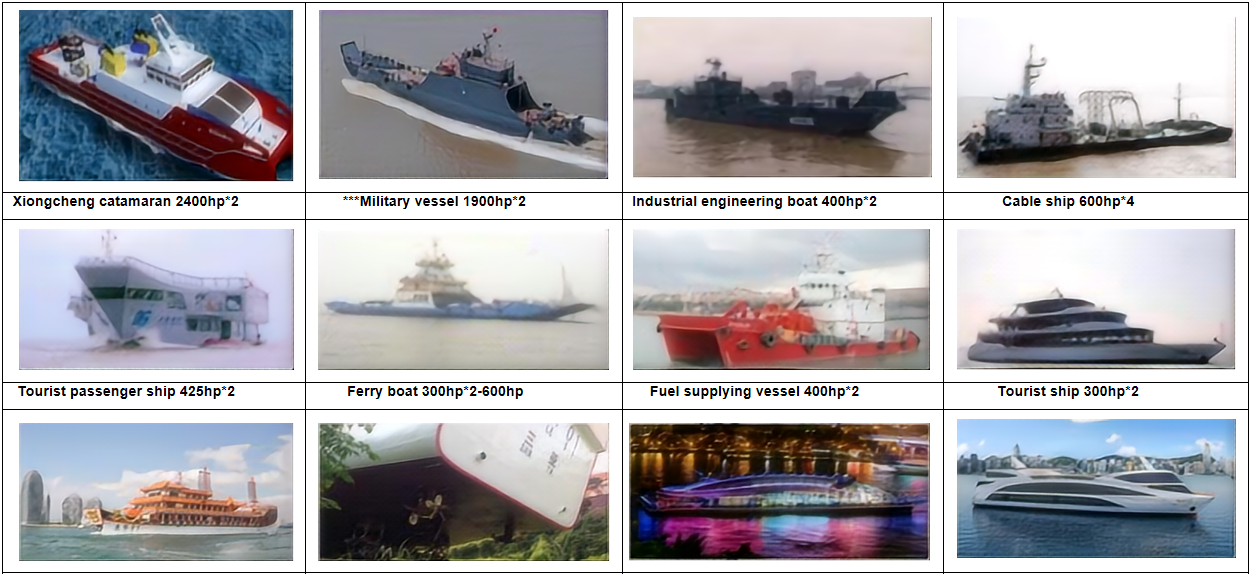

From 2013 to 2017, we provided 17 sets (34 units) of 1.4MW ( 1900hp) contra-rotating propeller rudders for the xx ships of the army. The actual ship achieved a performance beyond the original conventional. The 0.5kn index requirement of the thruster plan and the overall performance index meet the requirements at one time.

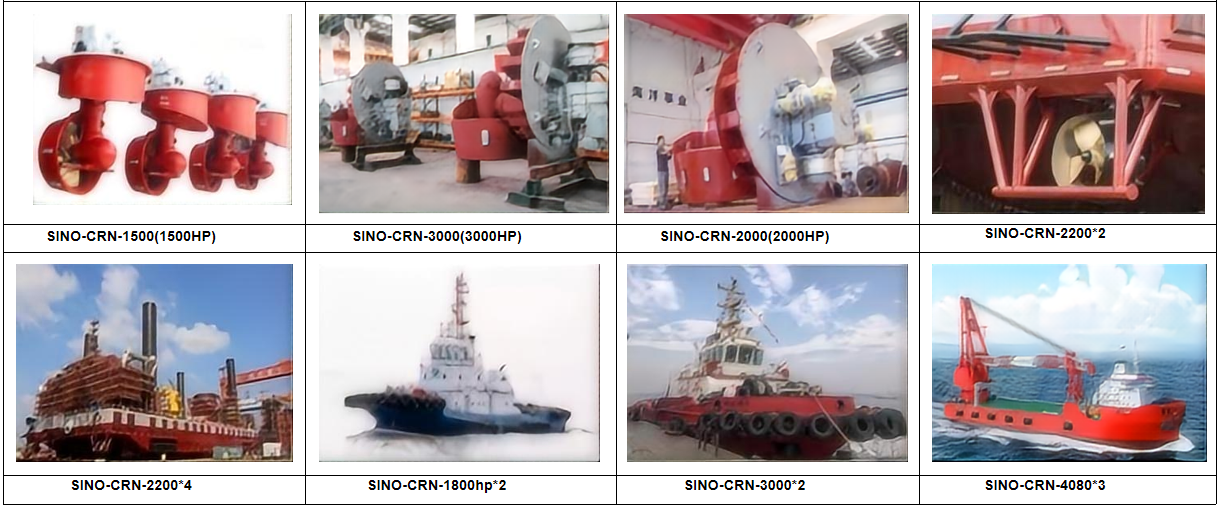

Nozzle type rudder propeller: The design power is 100kW~4.5MW, and the installed power is 100kW~2.2MW. It is used for tugboats, marine engineering and other types of ships with relatively high towing power requirements return. The rotation mode can be hydraulic or purely powered.
