General introduction:
China Hangzhou Advance marine gearbox D300 for boat
Parameters:
| Input speed | 1000-2500r/min | ||
| Reduction ratio | 4.00 | Trans. capacity | 0.257kw/r/min |
| 4.48 | 0.243kw/r/min | ||
| 5.05 | 0.221kw/r/min | ||
| 5.52, 5.90 | 0.184kw/r/min | ||
| 6.56,7.06 | 0.147kw/r/min | ||
| 7.63 | 0.125kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 60KN | ||
| Center distance | 355mm | ||
| L×W×H | 786×980×1041mm | ||
| Net weight | 940kg | ||
| Flywheel | 12V135,12V150,SAE18,16,14 | ||
| Bell housing | 12V135,12V150,SAE0,1 | ||

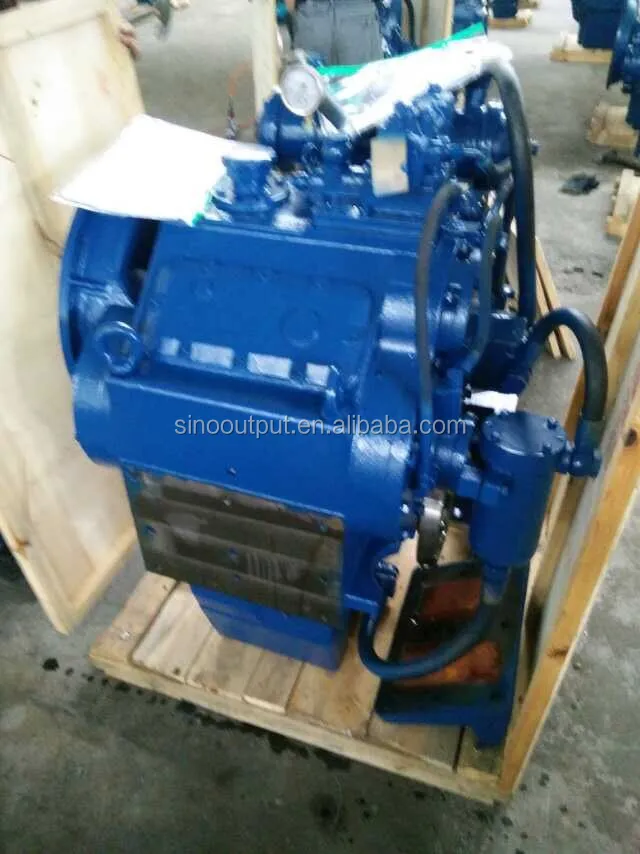

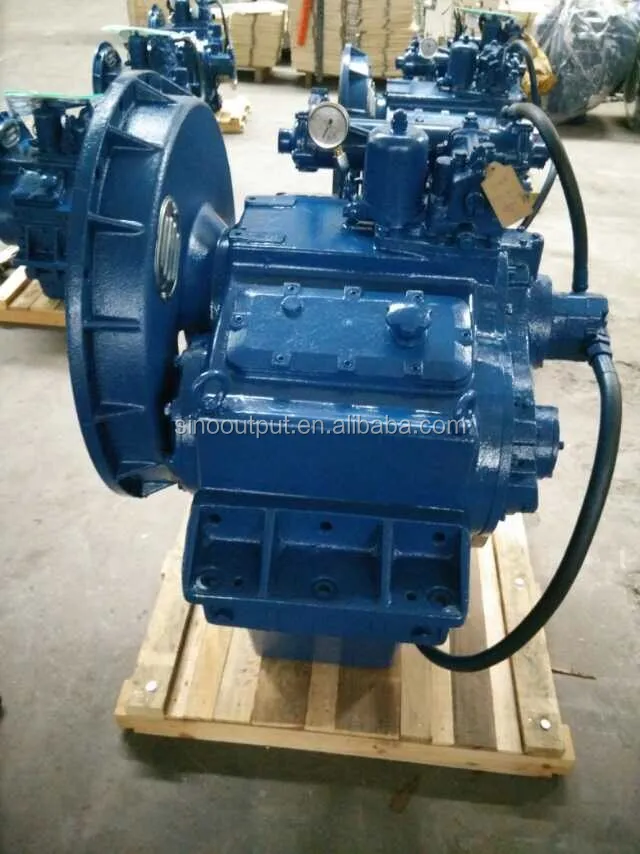

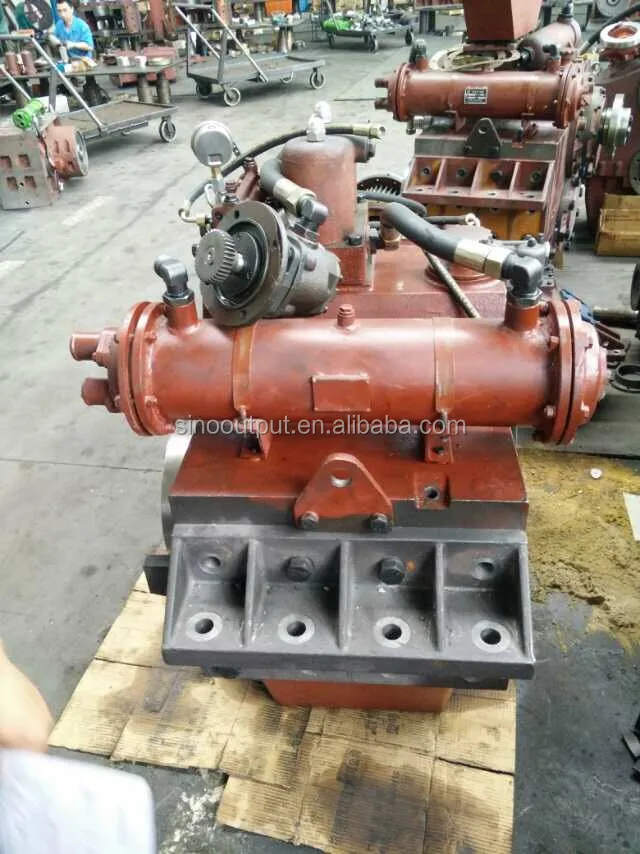

Workshop spictures:
